Why Precision Matters: How TIVO Ensures 100% Helium Leak Detection for Every Fusion-Bonded Unit
In the demanding sectors of semiconductor fabrication, aerospace cooling, and natural refrigerant (R717) loops, there is no such thing as a "permissible leak." When a fusion-bonded heat exchanger is integrated into a multi-million dollar system, even a microscopic molecular defect can lead to catastrophic downtime, chemical contamination, or severe safety hazards.

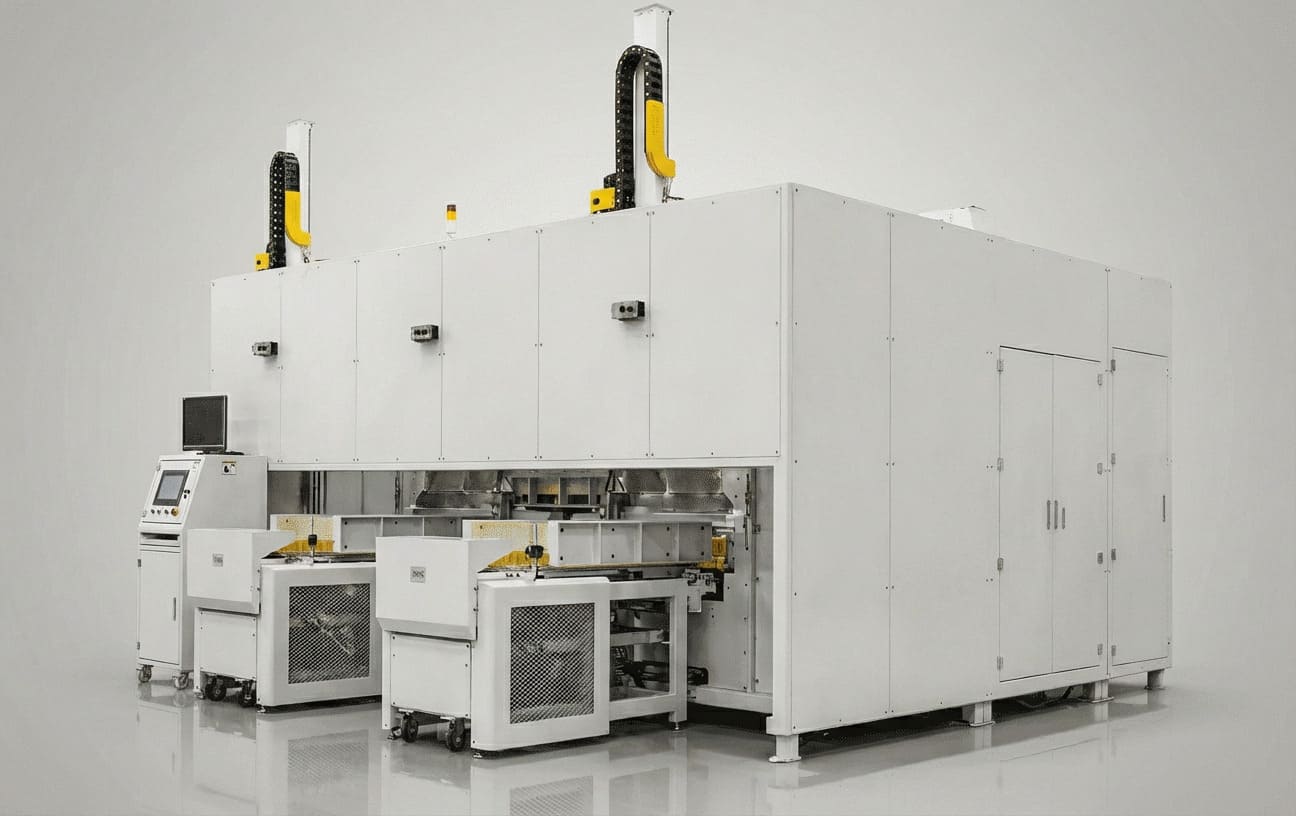

At TIVO, our engineering philosophy is built on a simple premise: If you cannot measure it with precision, you cannot guarantee it. This is why every single unit in our Fusion-Bonded series undergoes a mandatory 100% Helium Mass Spectrometer Leak Detection (HMSLD) protocol.
🔬 1. The Physics of Detection: Why Helium is the Ultimate Tracer
Many manufacturers still rely on traditional hydrostatic (water) tests or air-under-water "bubble" tests. While these methods are cost-effective, they are fundamentally flawed for high-purity applications. Water molecules are significantly larger than helium atoms and fail to penetrate the micro-porosities that can exist within a 100% stainless steel fusion bond.
According to the American Society for Nondestructive Testing (ASNT) [1], helium is the second smallest atom in existence. Its low background concentration in the atmosphere (only 5 ppm) and its ability to traverse even the smallest molecular gaps make it the gold standard for leak detection.
| Feature | Hydrostatic (Water) | Air-under-Water | TIVO Helium (HMSLD) |
|---|---|---|---|
| Sensitivity | Low (Visible drips) | Moderate (Bubbles) | Extreme ($10^{-9}$ mbar·l/s) |
| Tracer Agent | Water Molecule | Air Mixture | Helium (2nd Smallest Atom) |
| Reliability | Basic Safety | Good for GPHE | Aerospace Grade Integrity |
| Drying Req. | Required (Messy) | Required | None (Vacuum Dry) |
Our Technical Benchmark: At TIVO, we calibrate our spectrometers to detect leak rates as low as $1 times 10^{-9} text{ mbar} cdot text{l/s}$. This is the level of "Absolute Integrity" we demand for our global semiconductor and chemical processing clients.
🛡️ 3. Engineering Insights: Long-Term Fatigue and Reliability
In my 15+ years of experience in the heat transfer industry, I’ve found that most leaks don't happen on Day 1. They happen on Day 500, after thousands of thermal cycles. Standard pressure tests cannot predict these long-term failures.
By ensuring a perfect fusion bond through helium detection, we are verifying the molecular homogeneity of the stainless steel. As researched by ASM International [4], a unit that passes a $10^{-9}$ helium test has a significantly higher fatigue life because it lacks the micro-voids where stress cracks typically begin. This makes TIVO the strategic alternative to global brands like Alfa Laval (AlfaNova series), offering the same technical rigor with a 6-8 week lead time. [5]
📜 4. Global Compliance and Documentation
Every Fusion-Bonded unit is backed by a comprehensive quality dossier. Our testing protocols are fully compliant with:
- ASME BPVC Section V [6]: Standards for Nondestructive Examination.
- PED 2014/68/EU [7]: Mandatory for all pressure equipment in the European market.
- ISO 9001:2015: Our foundation for engineering excellence since 2011. [8]
🚀 Secure Your High-Purity Thermal Loop
Don't settle for "probably leak-free." Whether you are designing an ammonia refrigeration rack or a semiconductor cooling system, demand verified integrity. Explore our TIVO Fusion-Bonded Product Series [5] and request a sample leak test report today.
Request a Technical Cross-Reference & HMSLD Test Protocol
