Interchangeable Solutions: How TIVO Fusion-Bonded Units Fit Existing AlfaNova Systems

You run a clean industrial process, perhaps with ammonia or high-purity water, and your heat exchanger fails. You check the lead time for a replacement from the original big brand, and they tell you to wait three months. You cannot afford to stop your production line for that long, but you also fear that a different brand will not fit your pipes.

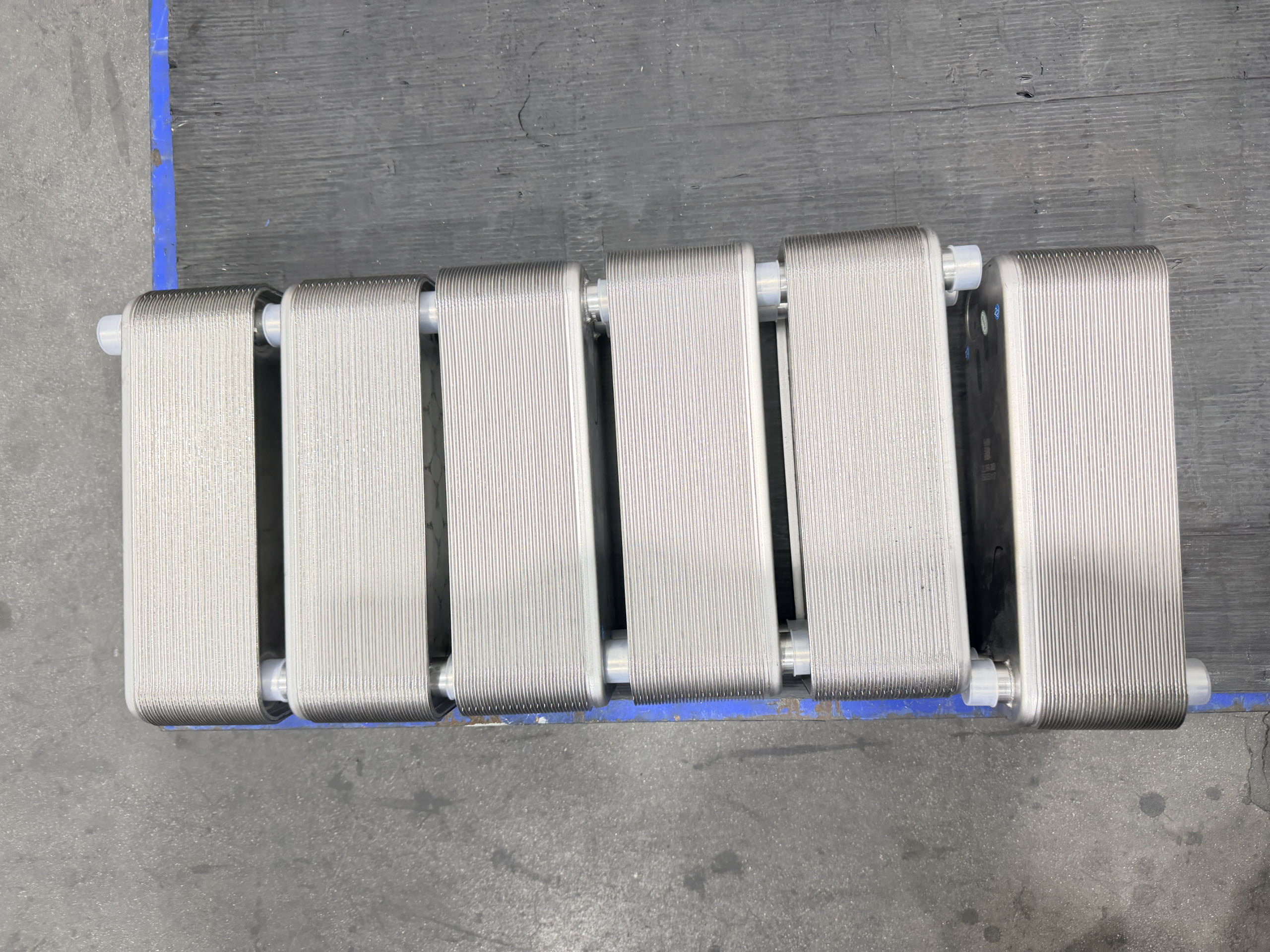

Our fusion-bonded heat exchangers¹ serve as direct replacements for many AlfaNova models² because we match the connection centers, port distances, and unit heights perfectly. We offer a delivery time³ of around 20 days, and our units use 100% stainless steel construction⁴ to ensure the same hygiene and corrosion resistance as the original.

You might think that switching brands requires expensive changes to your piping or system layout. I want to show you why that is not true and how we solve this problem efficiently.

LOOP START

Can TIVO units truly replace AlfaNova models without piping changes?

You are worried that buying a non-original heat exchanger means you have to cut pipes and weld new flanges. This creates extra work, costs more money, and extends your shutdown time.

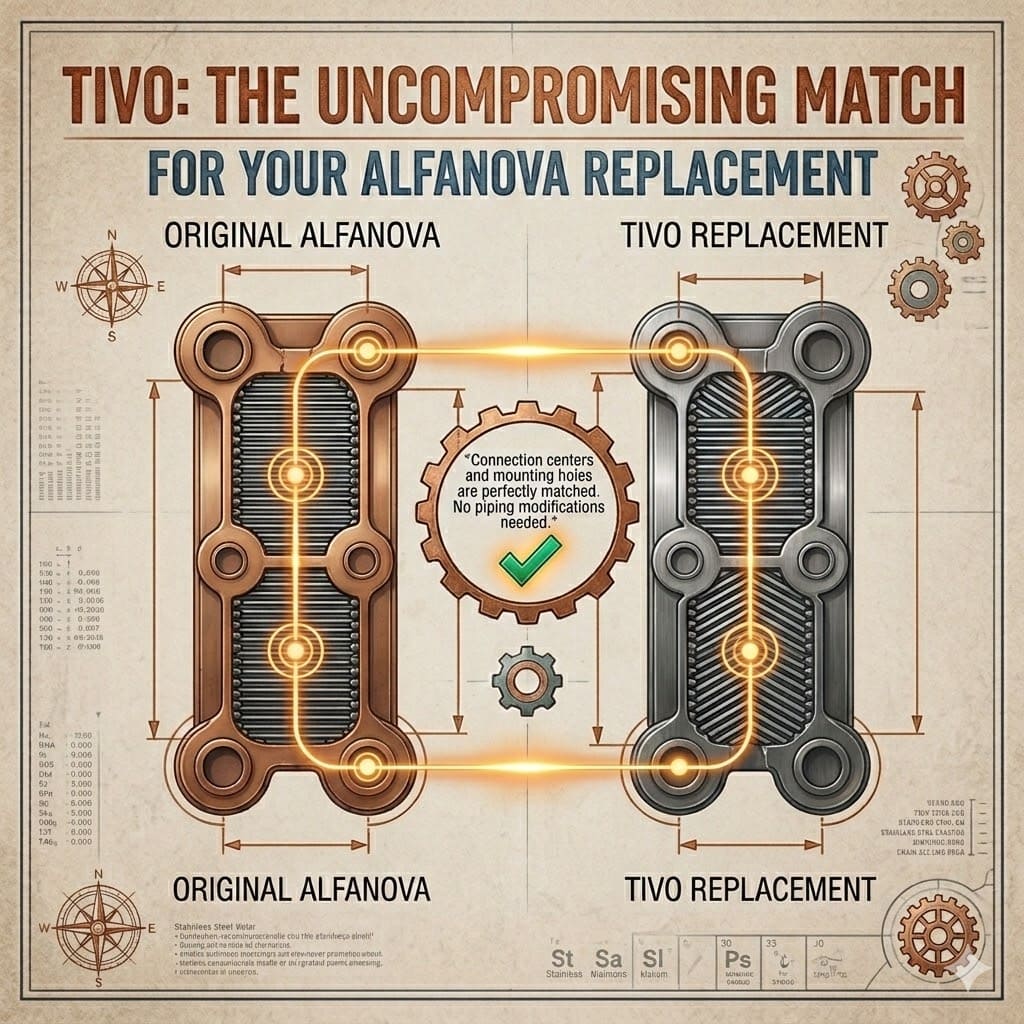

We design our fusion-bonded units specifically to match the "connection centers⁵" and mounting points of popular global models. This means you can unbolt the old unit and bolt ours straight in without modifying your existing pipework.

The Importance of Precise Dimensions

When I speak with maintenance managers, their biggest fear is not the heat transfer performance, but the physical installation. If a unit arrives and the ports are just five millimeters off, it is a disaster. You cannot stretch a stainless steel pipe. That is why at TIVO, we focus heavily on the dimensional accuracy⁶ of our replacements. We have studied the standard AlfaNova models extensively. We know their height, their width, and most importantly, the exact distance between the inlet and outlet ports.

We have invested in advanced molds⁷ that replicate these dimensions. When we say "interchangeable," we mean it physically fits into the exact same space. This is often called a "drop-in" replacement. For a project I handled recently in Germany, the customer was using a 100% stainless steel unit for a hygienic application⁸. They were skeptical that our unit would align with their rigid piping rack. We sent them a detailed drawing first. They measured their site, and everything matched. When the unit arrived, they installed it in under two hours.

Below is a breakdown of the critical dimensions we match to ensure a smooth installation:

By adhering to these strict dimensional standards, we remove the risk from your procurement process. You get a unit that acts like the original in form, while often exceeding expectations in service and delivery speed.

LOOP END

LOOP START

How does the fusion-bonding quality compare to the original brand?

You might question if a replacement unit can handle the same high pressure and corrosive fluids as the famous brand. You need assurance that the materials are pure and the construction is solid.

Our fusion-bonded heat exchangers are made from 100% stainless steel using advanced vacuum furnace technology⁹. We do not use any copper filler, which makes our units perfect for ammonia refrigeration¹⁰ and high-purity water applications just like the original.

Understanding Fusion Technology and Material Safety

The term "fusion-bonded" or "all-stainless" is critical for specific industries. In standard brazing, manufacturers use copper to join the stainless steel plates. However, if you work with ammonia (NH3), copper is dangerous because ammonia corrodes copper rapidly. This can lead to catastrophic leaks. The AlfaNova series became famous because it uses a fusion process without copper. At TIVO, we use the same principle. We use a nickel-based or pure stainless fusion technique in a high-temperature vacuum furnace. This creates a bond that is as strong as the base material itself.

I have seen inside our factory how we handle these materials. We use 100% spectral analysis on our 304 and 316L steel before we even start pressing plates. This ensures that the chemical composition is correct. We know that our customers in the pharmaceutical or food sectors cannot risk contamination. Our production lines are equipped with automatic pressing and laser cutting. This precision ensures that the fusion bond is uniform across every single plate.

Furthermore, we test every single unit. We do not just test one out of ten. We perform hydraulic pressure testing¹¹ and helium leak detection on 100% of our products. Our fusion-bonded units can handle pressures up to extreme levels, making them safe for challenging environments. When you buy from us, you are not buying a "cheaper" version in terms of quality; you are buying a unit built with the same rigorous standards, backed by ISO 9001, CE, and UL certifications. We have over 15 years of experience in this specific manufacturing process, so we know exactly how to control the temperature curves in the furnace to guarantee a solid, leak-proof unit.

LOOP END

LOOP START

How much time can you save on delivery compared to big manufacturers?

The standard lead time for a specialized fusion-bonded unit from a major global brand is often two to three months. This waiting period puts your entire operation at risk and causes stress for your procurement team.

We can manufacture and deliver these specialized units in approximately 20 days. Our agile production lines and efficient batch management system allow us to cut the waiting time significantly while maintaining strict quality control.

The Advantage of Agile Manufacturing

Time is money in the industrial world. I talk to customers every week who are frustrated by the "big company" bureaucracy. When you order from a giant corporation, your order enters a long queue. They have rigid schedules and slow internal processes. Even if your plant is shut down, they might tell you that you still have to wait 12 weeks. This is where TIVO is different. We have 16 complete production lines. We have optimized our workflow specifically for speed without sacrificing quality.

Because we are the manufacturer and not just a distributor, we control the schedule. When we receive an urgent order for a fusion-bonded replacement, we can slot it into our production plan immediately. We keep a stock of raw materials, including the specific stainless steel foils required for these units. This means we do not have to wait for materials to arrive before we start working.

For a customer in the USA, we recently delivered a batch of replacements for their chiller system. Their original supplier quoted 14 weeks. We finished production in 18 days. Including shipping, they had the units on-site months before the competitor could have even shipped them. This speed allows you to reduce your inventory of spare parts. You do not need to keep thousands of dollars of capital tied up in spare units sitting on a shelf if you know you can get a replacement from us in under a month. We bridge the gap between emergency needs and long-term supply stability.

LOOP END

LOOP START

Do we provide technical support to ensure the performance matches?

You might worry that even if the unit fits physically, it might not perform the same thermal duty. You need proof that the heat transfer and pressure drop will meet your specific system requirements.

Our technical department simulates your exact operating conditions to select the best model. We provide detailed technical parameters and drawing evaluations to prove that our unit will perform as well as, or better than, the original.

Engineering Verification and Simulation

Replacing a heat exchanger is not just about matching the pipe connections. It is about matching the "thermal duty." This involves the Logical Mean Temperature Difference (LMTD), the heat transfer area, and the pressure drop. If the replacement unit has too much pressure drop, your pumps will struggle. If it has too little heat transfer area, your system will not cool or heat effectively. I know that simply guessing is not enough.

That is why our technical team is so important. We do not just read a part number and guess. We ask for your operating data. We use advanced thermal simulation¹² software to model how our unit will behave with your specific fluids and temperatures. We can calculate the exact performance curve. Often, we find that the original unit was actually oversized or undersized for the current duty. We can then recommend a model that is even more efficient for what you are doing today.

After we select the model, we issue a comprehensive technical proposal. This includes a data sheet showing the calculated performance and a dimensional drawing. You can show this to your engineers or your client. It gives you peace of mind. You can see the numbers before you spend a single dollar. We also provide advice on installation and maintenance. Since we have been doing this for over 15 years, we have seen thousands of different applications. We know what works and what does not. We bring this expertise to every quote. We act as your technical partner, not just a factory that stamps metal. This level of support ensures that when you swap the unit, the system runs smoothly immediately.

LOOP END

Conclusion

We offer a direct replacement for AlfaNova systems that matches dimensions, ensures high-quality stainless steel construction, and arrives in weeks instead of months.
