Scaling Your Ultra-Pure Water System with Reliable Fusion-Bonded Heat Transfer

Upgrading your ultra-pure water system? Old heat exchangers cause leaks and ruin water quality. I will show you how fusion-bonded technology¹ fixes this safely and quickly.

You can scale your ultra-pure water system safely by using 100% stainless steel fusion-bonded heat exchangers². These units remove copper and rubber from the process. This stops metal and organic contamination³. They also save space, making them the best choice for clean and compact water upgrades.

You might think any clean heat exchanger will work for your new water system. But picking the wrong one will shut down your whole plant. Let me explain why this happens and how you can avoid it.

Why Does "Hungry Water" Destroy Standard Heat Exchangers?

Ultra-pure water acts like a hungry sponge. It eats the copper in standard brazed units. This causes fast leaks. Fusion-bonded units stop this problem completely.

Ultra-pure water (18.2 MΩ·cm) quickly dissolves copper solder⁴ found in standard brazed heat exchangers. This releases copper ions that destroy semiconductor wafers and proton exchange membranes⁵. A fusion-bonded heat exchanger made of 100% stainless steel⁶ is the only safe solution because it has no copper.

I remember visiting a large semiconductor plant in Asia last year. The plant manager, David, was very upset. His new cooling loop failed after just three months of use. Why did this happen? He used standard brazed plate heat exchangers⁷ for his water system.

Ultra-pure water is extremely clean. It has no minerals at all. Because it is so clean, it actively looks for ions to absorb. Engineers call this the "hungry water⁸" effect. When this hungry water touches the copper solder inside a standard heat exchanger, it acts like an acid. It pulls the copper right out of the metal joints.

The Danger of Copper Ions

Once copper gets into your clean water stream, the damage is huge and very costly. If you make microchips, copper ions will ruin the wafer yield instantly. Millions of dollars can be lost in one day. If you run hydrogen electrolyzers, the copper coats the delicate proton exchange membranes. This stops the membranes from working completely.

The 100% Stainless Steel Fix

At my factory, JIANGYIN TIVO TECHNOLOGY⁹, we fix this exact problem with fusion-bonded heat exchangers. We build these units with 100% pure stainless steel. We use zero copper in the manufacturing process. We bond the stainless steel plates together using extreme heat¹⁰. This creates a solid, one-piece metal block. This design keeps your water perfectly clean and stops all leaks.

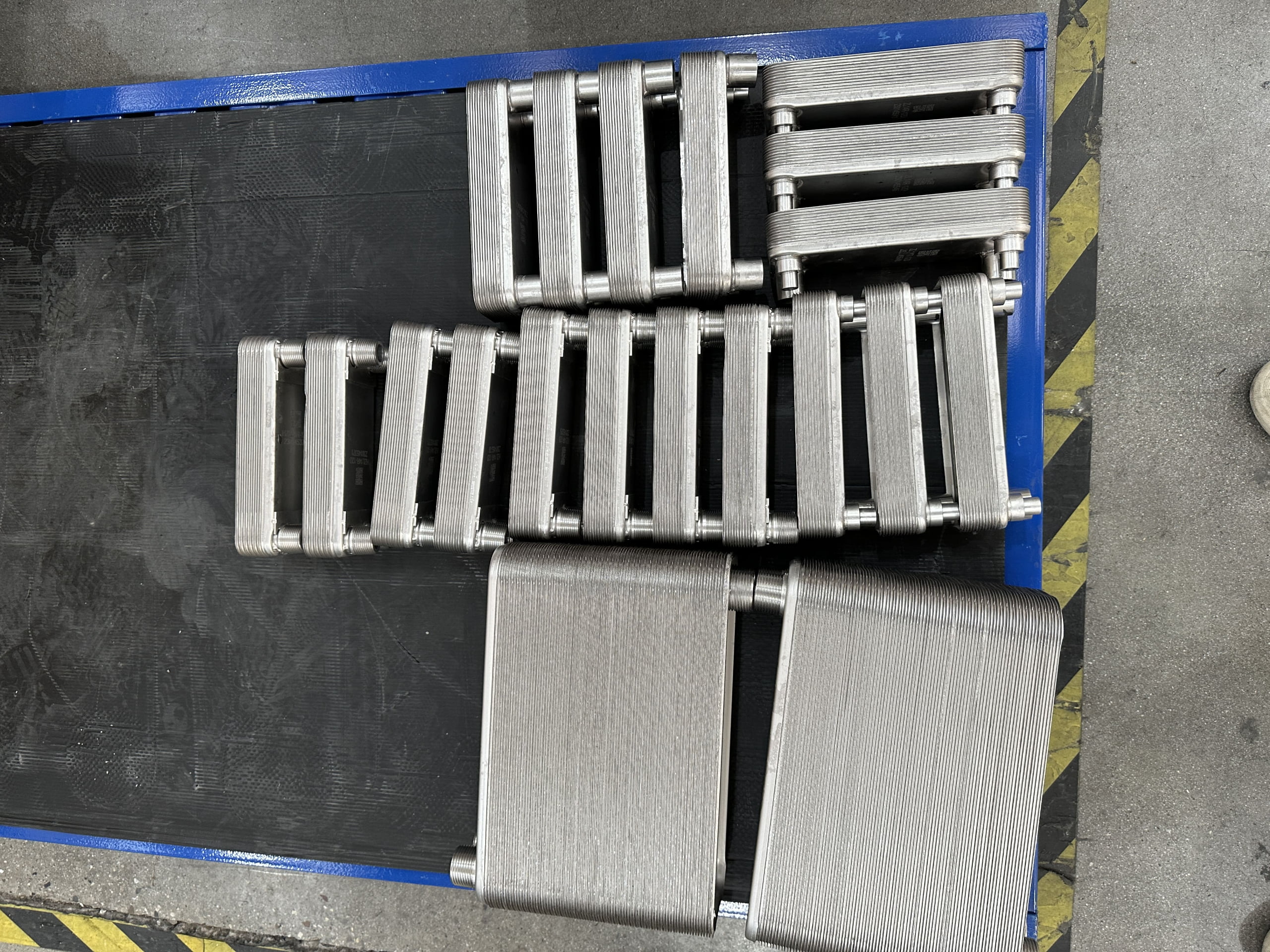

How Can You Eliminate TOC Contamination in Your Water System?

Rubber gaskets break down in hot, pure water. They release organic carbon. This carbon ruins nano-chips. A fully welded unit¹¹ removes gaskets and keeps your water safe.

Gasketed plate heat exchangers use rubber seals. Hot ultra-pure water washes over these seals and releases Total Organic Carbon (TOC)¹². Even tiny amounts of TOC will ruin nano-level chip manufacturing. Fusion-bonded heat exchangers use a fully welded metal structure. This completely removes the TOC risk from rubber gaskets.

A few years ago, I worked with a water plant engineer named Lars from Denmark. He could not figure out why his pure water test showed high TOC levels. He checked all his water filters. Everything looked fine. Then I looked at his heating loop. He used a normal gasketed plate heat exchanger.

The Hidden Danger of Rubber Gaskets

Rubber gaskets are great for normal tap water. But ultra-pure water is very different. When you heat ultra-pure water, it slowly attacks the rubber seals. Over time, the rubber breaks down. It releases tiny bits of organic matter into the clean water. In the high-tech chip-making world, even parts per billion (ppb) of TOC will cause massive product failures. You cannot wash this organic carbon away easily. It sticks to everything.

The All-Metal Advantage

To keep your water safe, you must remove all rubber from the heat transfer process. Our fusion-bonded heat exchangers have a 100% solid metal structure. We melt the steel plates together. There are no gaskets. There is absolutely no rubber to break down over time. This means you face zero TOC contamination risks. You get total peace of mind knowing your water stays perfectly pure day after day. You also save money because you never need to buy replacement gaskets.

How Do You Scale UPW Capacity in Tight Plant Spaces?

Adding more water capacity¹³ means you need bigger machines. But plant rooms are small. Shell and tube exchangers waste space. Compact fusion-bonded units solve this space problem easily.

When you expand your ultra-pure water capacity, you face strict space limits in the plant room. Traditional stainless steel shell-and-tube heat exchangers are too large. Fusion-bonded heat exchangers combine the extreme compactness of a plate design with the supreme purity of an all-welded structure.

When you expand a factory, you always face headaches. My client, Elena, designs systems for big industrial plants in Europe. Last month, she needed to double her ultra-pure water output. But her plant room had almost no extra floor space. She first thought about using shell-and-tube heat exchangers. They can be made of pure stainless steel. But they are huge and very heavy.

The Problem with Shell and Tube

Shell-and-tube designs are very old technology. They need long metal tubes to transfer heat from one fluid to another. This means they take up a lot of room. When you need to scale up your water capacity, you simply cannot fit these big tubes into a tight corner. Plus, they are very heavy. You need special lifting tools just to move them into the building. This wastes time and money.

Big Power in a Small Box

This is why I always suggest fusion-bonded heat exchangers for scaling up. They use special corrugated plates. These plates create a lot of water turbulence inside the unit. This makes the heat transfer process very fast and highly efficient. Because of this high efficiency, a fusion-bonded unit is up to 80% smaller than a shell-and-tube unit. It gives you the same pure, all-welded safety but fits in a very tiny space. You can easily add more units to your water system without breaking walls to make more room.

Conclusion

Scaling ultra-pure water requires strict safety and smart space use. Fusion-bonded heat exchangers stop copper leaks, remove TOC risks, and save valuable room in your growing plant.
