APV SR6 Plate Heat Exchanger Plates & Gaskets: Precise Corrugation Design

You face sudden leaks when gaskets shift on your plates. Plant shutdowns cost you money. I will show you how precise corrugation design¹ solves this problem for APV units.

Precise corrugation design ensures your gaskets lock perfectly into the plate grooves. This match maintains the original vortex flow² and heat transfer rate. It also stops gasket blow-out³ during pressure surges. Our exact SR6 replacements keep your heat exchanger running safely.

You might think all replacement plates are the same. Many suppliers cut corners to save money. This hidden trap will ruin your equipment. It will cause massive downtime⁴. You must know what happens inside your heat exchanger when you use cheap parts. Let us look at the real danger.

How Do We Prevent Gasket Displacement During Pressure Surges?

Pressure surges hit your system often. Your gaskets slip out of place. Fluids leak. We use high-precision molds⁵ to lock your gaskets tight.

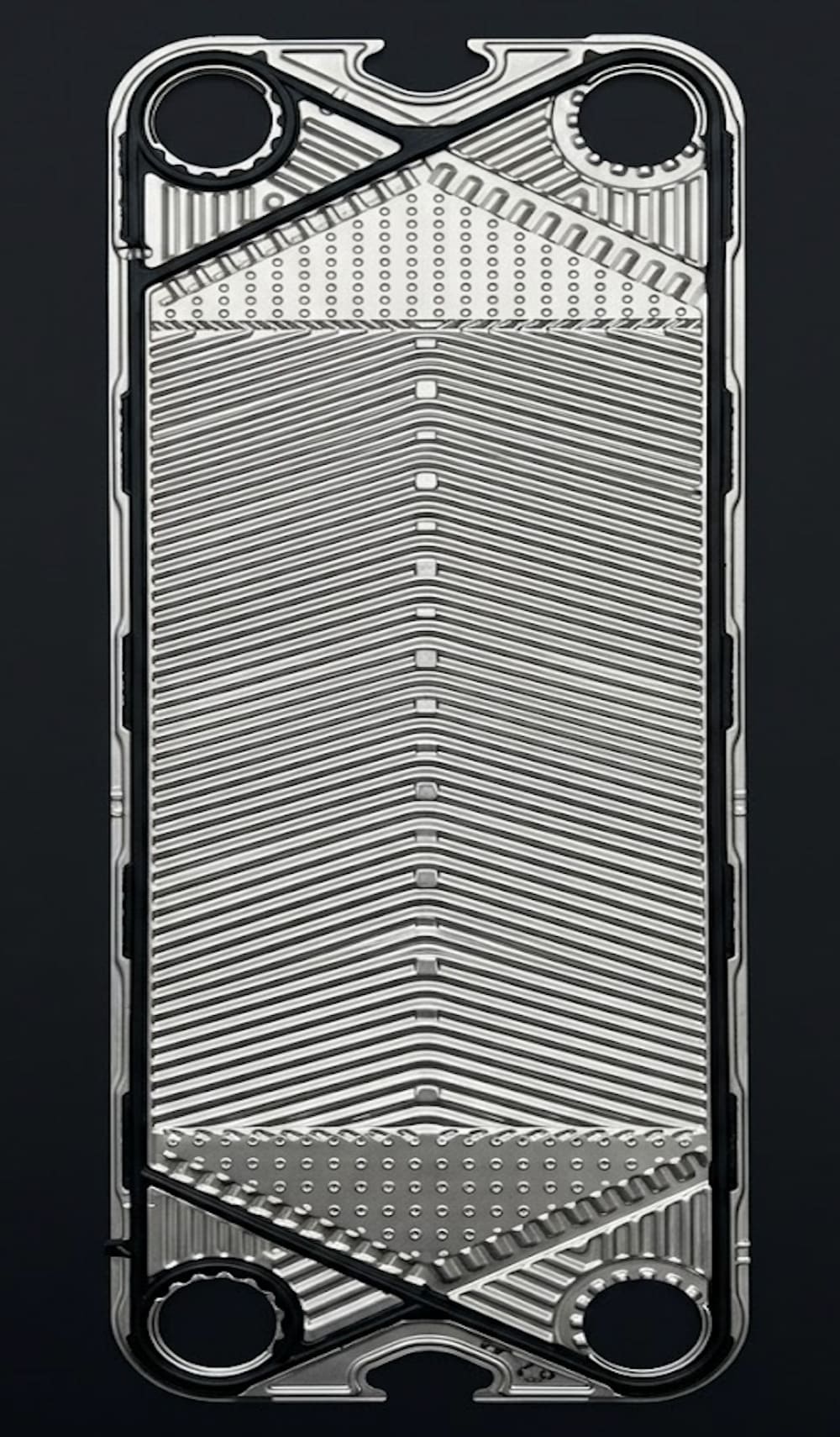

We design our TIVO SR6 plates⁶ with the exact seal groove points as the original plates. High-precision molds create a strong bite force between the gasket clips and the plate edges. This stops the gasket from falling off during frequent start and stop cycles.

I talk to maintenance managers⁷ like you all the time. Customers fear gasket displacement the most. A slipped gasket means a sudden leak. You have to stop the whole line. Why does this happen? Many aftermarket parts have weak clip designs. The clips do not grab the plate edge well.

The Danger of Frequent Starts and Stops

Your system does not run at a steady pressure all day. You turn pumps on and off. This creates pressure surges. The fluid hits the plates hard. If the gasket position is wrong, the pressure pushes the rubber out of the groove.

I want you to see the difference between a poor fit and a perfect fit.

We fix this problem at the root. We use high-precision molds for our SR6 plates. Our clips bite the plate edge with high force. The rubber stays in the groove. You can start and stop your system safely. Your plant keeps running without unexpected leaks.

Why Is an Exact Pressing Depth Crucial for Heat Transfer?

Your heat exchanger loses efficiency over time. You spend more energy to cool your fluids. We maintain an exact pressing depth⁸ to keep your heat transfer high.

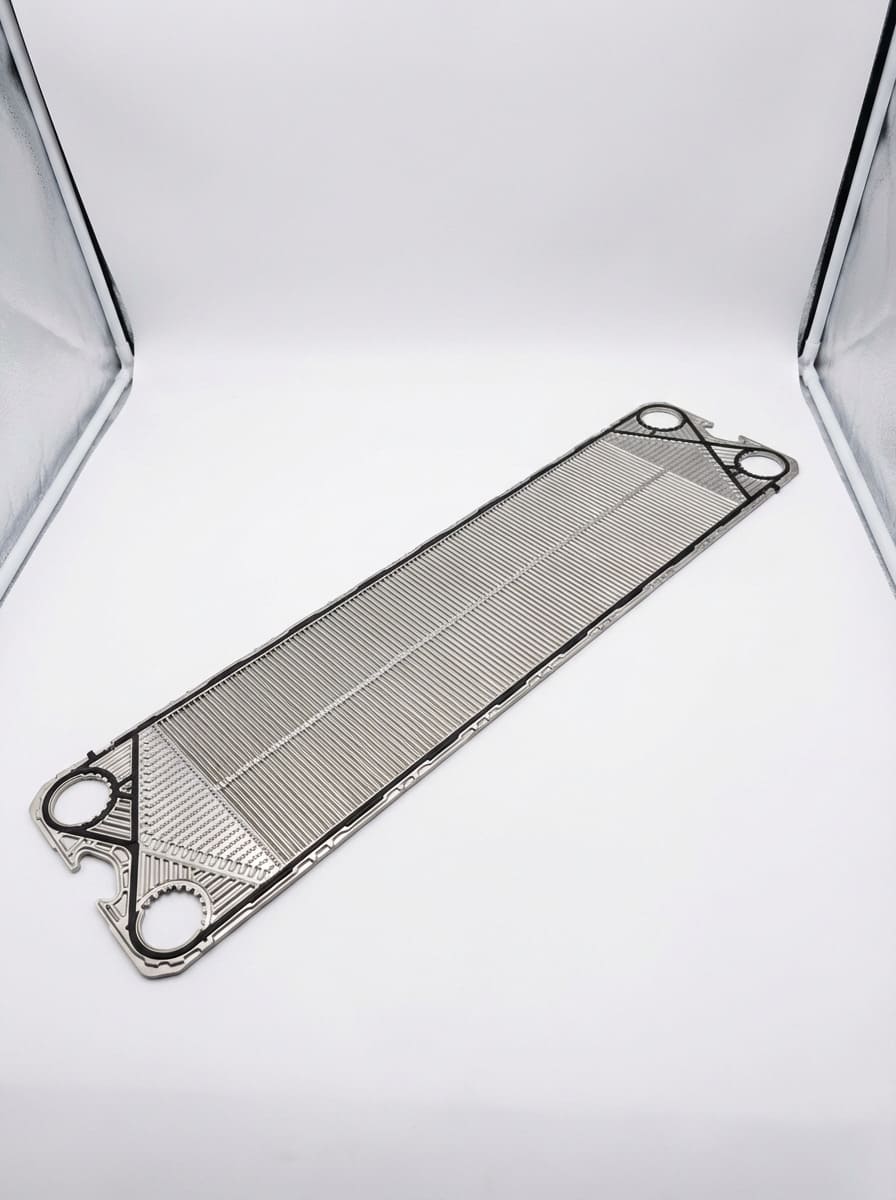

An exact pressing depth ensures the fluid forms the same vortex as the original design. This restores your system to its original efficiency. Many suppliers reduce plate sharpness to save their molds. We insist on full depth for maximum heat transfer.

I want to share a secret about plate manufacturing. Stamping stainless steel is hard. The sharp shapes wear out the press machine fast. Many ordinary suppliers want to save money. They reduce the sharpness of the plates. They make the pressing depth a little bit shallow.

How Shallow Plates Kill Your Efficiency

You cannot see this small change with your eyes. But the fluid feels it. The original APV SR6⁹ design uses specific angles and depths to make the fluid spin. This spin is called a vortex. The vortex mixes the hot and cold fluid well. It gives you a high heat transfer rate.

When you use a shallow plate, the fluid flows too smoothly. It does not spin enough. Your efficiency drops. You waste energy.

We never cut this corner. We insist on an exact depth reproduction. We replace our molds more often. You get the exact efficiency you paid for. Your system runs at full capacity. You save money on your daily energy bills.

Can Heat Treatment Stop Micro-Cracks Under Sudden Temperature Shifts?

Sudden temperature changes crack your metal plates. Fluids mix and ruin your product. We use special heat treatment¹⁰ to make your plates strong against sudden temperature shifts.

Stamping creates internal stress in the metal. This stress turns into small cracks during temperature shifts. We apply advanced heat treatment to our SR6 plates after stamping. This removes the internal stress. It greatly increases the life of the plates under extreme temperature changes.

Metal looks strong. But it has weaknesses. A massive machine stamps a flat sheet of stainless steel into a shaped plate. The metal stretches. This stretching creates high internal stress inside the material.

The Hidden Danger of Internal Stress

If you leave this stress inside the plate, you have a big problem. In real plants, you often have sudden temperature changes¹¹. Hot fluid rushes in. Then cold fluid rushes in. The metal expands and shrinks quickly.

The internal stress fights against this expansion. Soon, tiny cracks form. You cannot see them at first. They grow over time. Eventually, the plate fails. The hot and cold fluids mix. This is a disaster for food processing or chemical plants.

We solve this by adding a heat treatment step. We treat the SR6 plates after we stamp them. This step releases the stress. The metal relaxes. This optimization massively boosts the life of the plates. They can handle sudden temperature changes without cracking. Your process stays safe and pure.

Where Can You Find Stable Stock for Older SPX SR6 Parts?

The original maker stopped focusing on your old equipment. You wait months for spare parts. We keep a massive stock of SR6 parts ready for fast delivery.

As the original maker releases new products, older SR6 models lose priority at their factory. Lead times become very long. We promise long-term stock for the entire SR6 series. We act as your backup warehouse. We ship parts in 7 to 15 days to stop your downtime.

Equipment gets old. Original makers always want to sell you their newest models. They change their product lines. They stop caring about older models like the SR6.

The Problem with Factory Priorities

I see this happen everywhere. A plant manager needs SR6 plates fast. He calls the original maker. They tell him he must wait 12 weeks or more. They might even charge a huge high price. They want to force him to buy a whole new heat exchanger.

This is bad for your business. You just need good replacement parts to keep your plant running. You cannot wait 12 weeks.

We do things differently. We know you rely on your existing equipment. We made a strict promise to our customers. We will provide long-term support for the SR6 series. We keep the plates and gaskets in stock. We act as your reliable backup warehouse. If you need parts, we ship them fast. You do not have to buy a new machine. We protect your daily operations.

Conclusion

Precise corrugation design, perfect gasket fit, and stable stock¹² keep your APV SR6 running. We provide the exact replacement parts you need to ensure high efficiency and zero leaks.
